Characteristics

• Technology: ultrasonic
• Medium: for liquids
• Other characteristics: HART, 2-wire, intrinsically safe
• Applications: for vessels
• Level range: Max.: 12 m (39’04”) Min.: 0.25 m (0’09”)
• Process temperature: Max.: 85 °C (185 °F) Min.: -40 °C (-40 °F)

Description

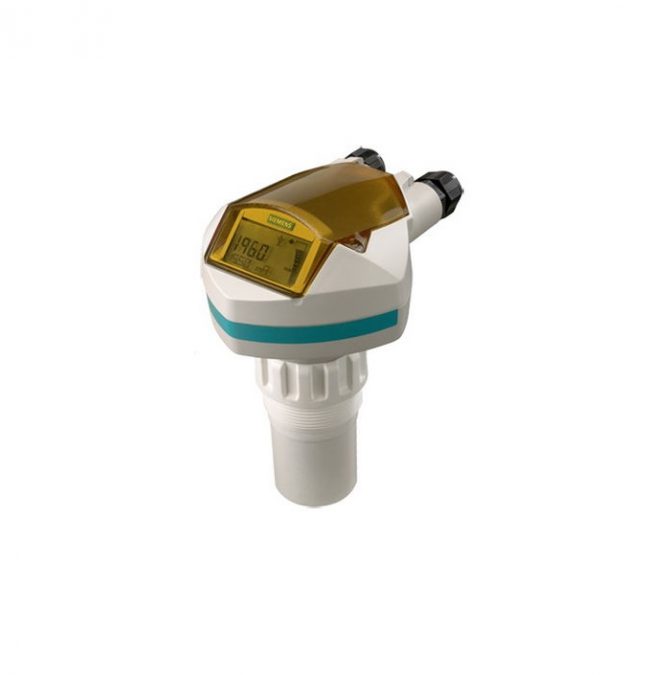

SITRANS Probe LU is a 2-wire loop powered ultrasonic transmitter for level, volume and flow monitoring of liquids in open channels, storage vessels and simple process vessels. The SITRANS Probe LU is ideal for level monitoring in the water and wastewater industry and chemical storage vessels. The range of SITRANS Probe LU is 6 or 12 m (20 or 40 ft). Using Auto False-Echo Suppression for fixed obstruction avoidance, as well as an improved signal-to-noise ratio and improved accuracy of 0.15% of range or 6 mm (0.25″).

the Probe LU provides unmatched reliability. SITRANS Probe LU includes Sonic Intelligence® signal processing from the field-proven Probe and incorporates new echo processing features and the latest micro-processor and communications technology. The Probe LU offers two communications options: HART or PROFIBUS PA (Profile version 3.0, Class B). The transducer on the Probe LU is available as ETFE or PVDF to suit the chemical conditions of your application. As well, for applications with varying material and process temperatures, the Probe LU incorporates an internal temperature sensor to compensate for temperature changes.

Benefits
Continuous level measurement up to 12 m (40 ft) range
Easy installation and simple start-up
Programming using infrared Intrinsically Safe handheld programmer, SIMATIC PDM or HART® Communicator
Communication using HART or PROFIBUS PA
ETFE or PVDF transducers for chemical compatibility
Patented Sonic Intelligence signal processing
Extremely high signal-to-noise ratio
Auto False-Echo Suppression for fixed obstruction avoidance
Level to volume or level to flow conversion
